Overview of Motorized Pumps

Click to see Hand Pumps or Foot Pumps

Model	Features	Hose Sizes (in / cm)	Motor Type	Capacity Range (gpm / lpm)	Pressure Range Max (psi / bar)	Max Head Range (ft / m)
GE-0400D	115 VAC gearmotors with speeds from 16 to 100 rpm 1.8 gpm to 11.0 gpm	1/2 to 1-1/4 1.3 to 3.2	115 VAC	1.8 to 11.0 3.8 to 41.6	8 / 0.55	5 to 18 / 1.5 to 5.5

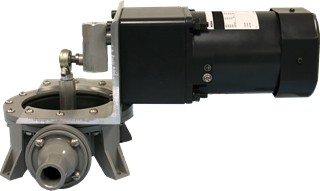

GE-0401D	115 VAC induction motors with speeds from 20 to 120 rpm 2.2 gpm - 13.2 gpm Available with dust/water resistant motor enclosures	1/2 to 1-1/4 1.3 to 3.2	115 VAC	2.2 to 11.0 8.3 to 41.6	12 / 0.83	7 to 25 / 2.1 to 7.6

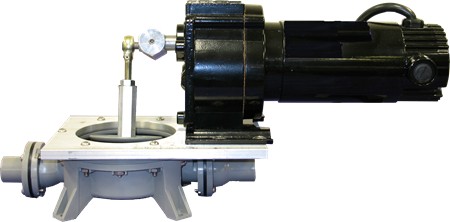

GE-0403D	12 VDC permanent magnet motors with speeds from 23 to 94 rpm 2.5 gpm - 10.3 gpm	1/2 to 1-1/4 1.3 to 3.2	12 VDC	2.5 to 10.3 9.5 to 39.0	15 / 1.03	16 to 25 / 4.9 to 7.6

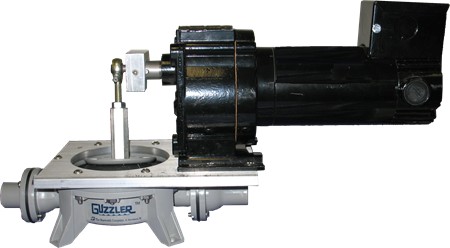

GE-0404D	24 VDC permanent magnet motors with speeds from 20 to 120 rpm 2.2 gpm - 13.2 gpm	1/2 to 1-1/4 1.3 to 3.2	24 VDC	2.2 to 7.0 8.3 to 26.6	15 / 1.03	9 to 25 / 2.7 to 7.6
GE-0400N	Potable-water approved components for parts in contact with fluid 115 VAC gearmotors with speeds from 16 to 100 rpm 1.8 gpm to 11.0 gpm	1/2 to 1 1.3 to 2.5	115 VAC	1.8 to 11.0 3.8 to 41.6	8 / 0.55	5 to 18 / 1.5 to 5.5
GE-0401N	Potable-water approved components for parts in contact with fluid 115 VAC induction motors with speeds from 20 to 120 rpm 2.2 gpm - 13.2 gpm Available with dust/water resistant motor enclosures	1/2 to 1 1.3 to 2.5	115 VAC	2.2 to 11.0 8.3 to 41.6	12 / 0.83	7 to 25 / 2.1 to 7.6

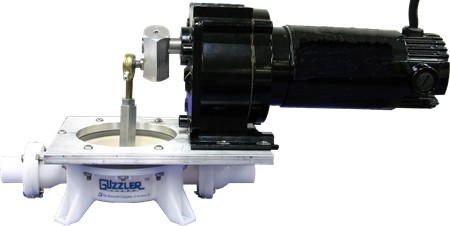

GE-0403N	Potable-water approved components for parts in contact with fluid 12 VDC permanent magnet motors with speeds from 23 to 94 rpm 2.5 gpm - 10.3 gpm	1/2 to 1 1.3 to 2.5	12 VDC	2.5 to 10.3 9.5 to 39.0	15 / 1.03	16 to 25 / 4.9 to 7.6

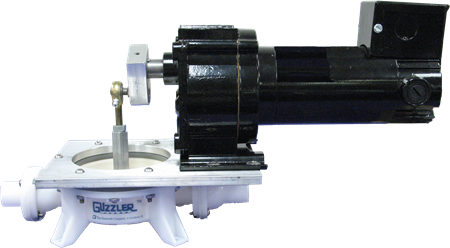

GE-0404N	Potable-water approved components for parts in contact with fluid 24 VDC permanent magnet motors with speeds from 20 to 120 rpm 2.2 gpm - 13.2 gpm	1/2 to 1 1.3 to 2.5	24 VDC	2.2 to 7.0 8.3 to 26.6	15 / 1.03	9 to 25 / 2.7 to 7.6
GE-0450D	115 VAC gearmotors with speeds from 16 to 100 rpm 1.8 gpm to 11.0 gpm Same-side ports for close-fitting installations	1/2 to 1-1/4 1.3 to 3.2	115 VAC	1.8 to 11.0 3.8 to 41.6	8 / 0.55	5 to 18 / 1.5 to 5.5

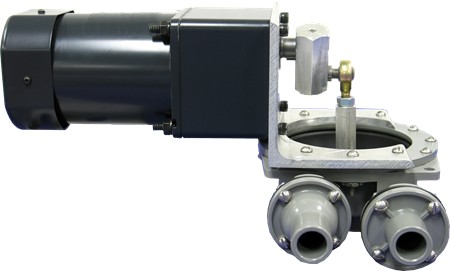

GE-0451D	115 VAC induction motors with speeds from 20 to 120 rpm 2.2 gpm - 13.2 gpm Same-side ports for close-fitting installations Available with dust/water resistant motor enclosures	1/2 to 1-1/4 1.3 to 3.2	115 VAC	2.2 to 11.0 8.3 to 41.6	12 / 0.83	7 to 25 / 2.1 to 7.6

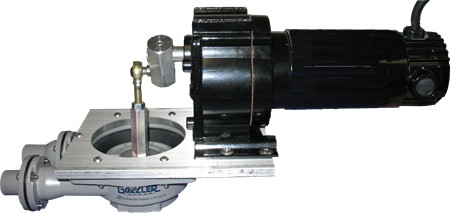

GE-0453D	12 VDC permanent magnet motors with speeds from 23 to 94 rpm 2.5 gpm - 10.3 gpm Same-side ports for close-fitting installations	1/2 to 1-1/4 1.3 to 3.2	12 VDC	2.5 to 10.3 9.5 to 39.0	15 / 1.03	16 to 25 / 4.9 to 7.6

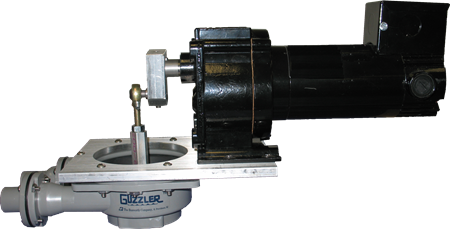

GE-0454D	24 VDC permanent magnet motors with speeds from 20 to 120 rpm 2.2 gpm - 13.2 gpm Same-side ports for close-fitting installations	1/2 to 1-1/4 1.3 to 3.2	24 VDC	2.2 to 7.0 8.3 to 26.6	15 / 1.03	9 to 25 / 2.7 to 7.6
GE-0500D	115 VAC gearmotors with speeds from 16 to 100 rpm 2.2 gpm to 13.8 gpm	1-1/4 to 2 3.2 to 5.1	115 VAC	2.2 to 13.8 8.3 to 52.3	8 / 0.55	5 to 18 / 1.5 to 5.5

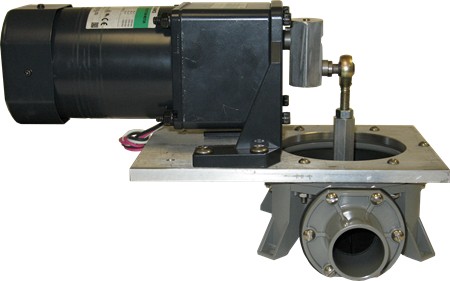

GE-0501D	115 VAC induction motors with speeds from 20 to 120 rpm 2.8 gpm - 16.5 gpm Available with dust/water resistant motor enclosures	1-1/4 to 2 3.2 to 5.1	115 VAC	2.8 to 13.8 10.6 to 52.0	12 / 0.83	7 to 25 / 2.1 to 7.6

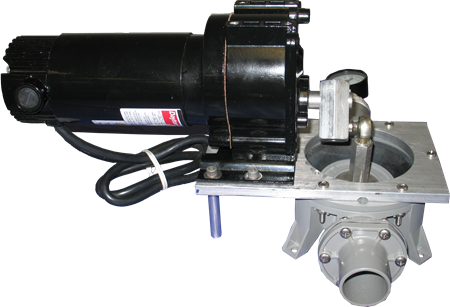

GE-0503D	12 VDC permanent magnet motors with speeds from 23 to 94 rpm 3.2 gpm - 12.9 gpm	1-1/4 to 2 3.2 to 5.1	12 VDC	3.2 to 12.9 12.1 to 48.8	15 / 1.03	16 to 25 / 4.9 to 7.6
GE-0504D	24 VDC permanent magnet motors with speeds from 20 to 120 rpm 2.8 gpm - 16.5 gpm	1-1/4 to 2 3.2 to 5.1	24 VDC	2.8 to 8.8 10.6 to 33.3	15 / 1.03	9 to 25 / 2.7 to 7.6
GE-2600A	Equipped with Gear Reducer & Motor-ready NEMA 56C flange Available Gear Ratios from 15:1 to 90:1	1-1/4 to 2 3.2 to 5.1	Motor-ready 56-C Flange	0.0 0.0	13 / 0.90	23 to 25 / 7.0 to 7.6

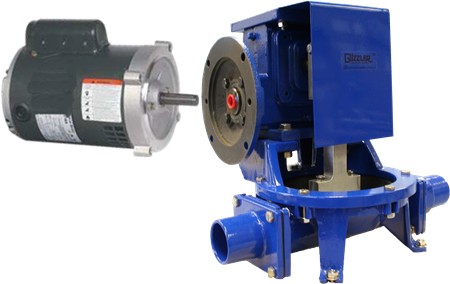

GE-2601A	115 VAC motor Pump speeds from 22 - 115 cycles per min (cpm) 4.4 gpm - 23.0 gpm	1-1/4 to 2 3.2 to 5.1	115 VAC	4.4 to 23.0 16.6 to 87.0	13 / 0.90	16 to 25 / 4.9 to 7.6

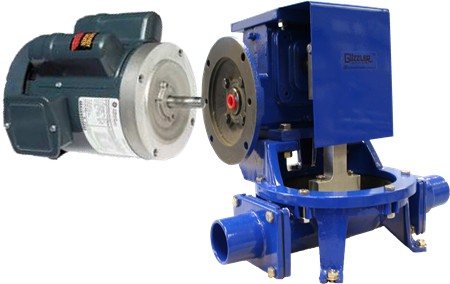

GE-2602A	220VAC / 50Hz motor with optional wiring configuration for 115VAC / 60 Hz mode 5.8 gpm - 19.0 gpm	1-1/4 to 2 3.2 to 5.1	220VAC / 50Hz	5.8 to 19.0 21.9 to 71.9	13 / 0.90	16 to 25 / 4.9 to 7.6

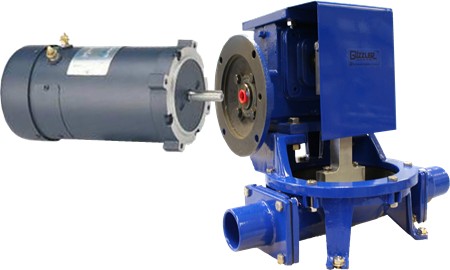

GE-2603A	12 VDC permanent magnet motors with speeds from 23 to 120 rpm 4.6 gpm - 24.0 gpm	1-1/4 to 2 3.2 to 5.1	12 VDC	4.6 to 24.0 17.4 to 90.8	13 / 0.90	16 to 25 / 4.9 to 7.6
GE-2604A	24 VDC permanent magnet motors with speeds from 30 to 120 rpm 6.0 gpm - 24.0 gpm	1-1/4 to 2 3.2 to 5.1	24 VDC	6.0 to 24.0 22.7 to 90.8	13 / 0.90	16 to 25 / 4.9 to 7.6
